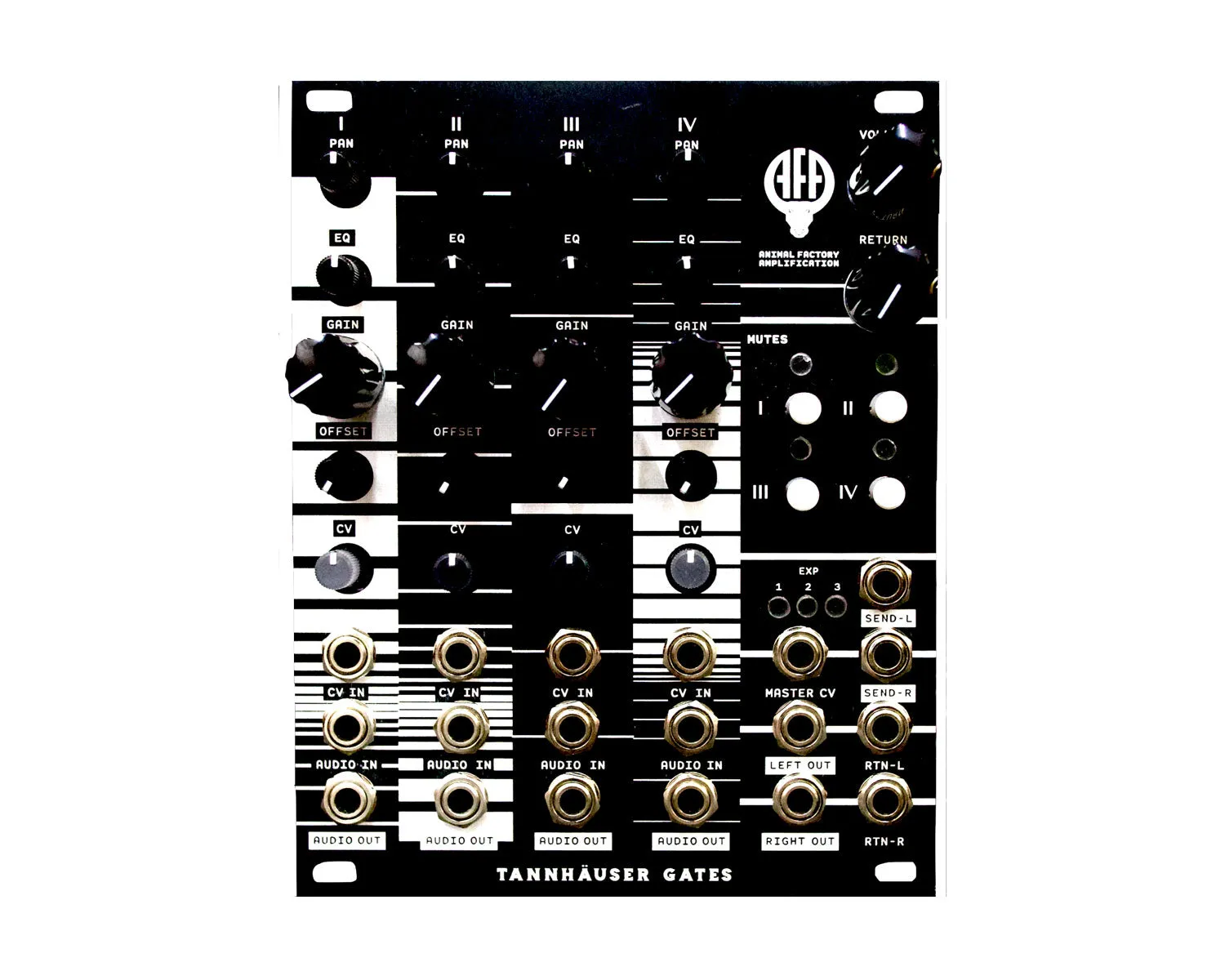

Part performance stereo mixer, part quad VCA, the Tannhäuser Gates is based loosely on the Buchla 100 series Gates.
Each channel has a discrete VCA with a rich overdrive sound, stereo panning, a tilt EQ and an easily accessible mute switch. Each channel can be used individually as a mono track or all four can be summed down to the stereo output. The four channels have an individual CV input, or they can all be controlled via a master CV input.
The Tannhäuser Gates also hosts the capability for a stereo send and return path, expanding your sonic arsenal to other processing modules.
Tannhäuser Gates is designed with future expansion in mind. Adding up to three more Tannhäuser Gates modules, it is possible to build a performance mixer system of up to 16 channels, all summed to a single output module. The back side of the module is equipped with a number of expansion headers for easy integration with future modules.

Video:

Product Specs

• Item Number: 28089
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: India
• MPN: EM6-TG-1
• Modular Grid: Eurorack
• Dimensions: 20 HP 34 mm deep
• Power: 146 mA 12V 94 mA -12V ? mA 5V
